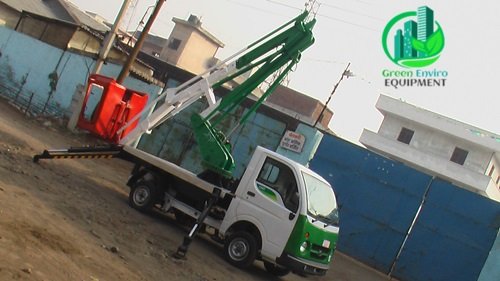

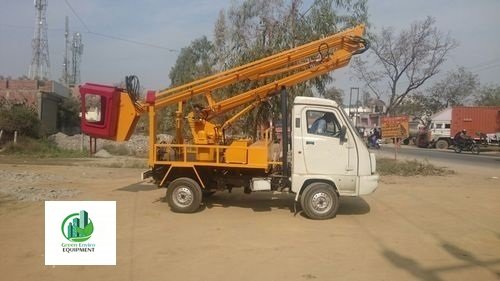

9 METER SKY LIFT ON BOLERO
MODEL NAME: SSL-9M
We are a well-renowned organization in the industry to provide our patrons the best quality Manufacturer of 9 Meter Sky Lift on Bolero chassis.
- Rugged design
- Excellent functionality
- Sturdy construction
- Low maintenance
- Working Height : 7, 9 Meter
- Type: 2 Boom
- Code: SSL-03
- Chassis : 2 Ton, 6 Ton, 7 Ton, 9 Ton, 12 Ton, 16 Ton Etc.
- Size Available: 7 Mtr, 9 Mtr, 11 Mtr, 14 Mtr, 16 Mtr or Customized .
- Sheet Material: Mild Steel (IS:2062)
- Thickness: 3 mm (4,5,6) Etc
- Bucket: FRP Material with Single Person or Two Person lift
- Cylinder: 2 Nos. for Bucket Lifting & 2 Nos. for Stabilizers (Customized)
- Hydraulic Pump: 20-80 LPM
- Hydraulic Motor: 50-200 CC
- Hydraulic Hoses: High Pressure Hoses
- Power Take Off : Suitable Power Transfer Ratio from Gear box to Drive Shaft
- Hydraulic Tank: 30-70 Ltrs capacity
- Operating : Sky lift is operated by help of 2 Nos. Heavy Cylinder those are mounted on Heavy Booms for lifting the Bucket on certain height by help of Control Valve.
